When your house feels like an oven in summer and a freezer in winter, it makes it difficult to go from room to room without needing to turn heaters and air conditioners on and off. If you’re looking for a cooling/heating solution for the entire house, instead of just one small room, ducted air conditioning might be the way to go. Read on as we explain the basics about ducted AC and review some major brands.
What is ducted air conditioning?
Ducted air conditioning is most commonly found in large buildings such as offices and hospitals. A ducted reverse cycle air conditioning system works through a series of ducts connected to an internal unit, which is installed either in the roof or under the floor of a home. The ducts run from the air conditioning unit to each room of the house, allowing you to cool each space using individual controls, or “zoning”. Zoning allows you to switch on different temperatures in different parts of the home or switch it off completely in rooms not being used. Some ducted systems also have the option of being reverse cycle units, capable of heating your home as well as cooling.
Pros & cons of ducted aircon
|Discreet installation with only controller and grilles visible inside the home||Expensive to install and run (especially if your ducted AC is not zoned)|
|Flexibility to cool or heat each room of your home and use zone control to maximise energy efficiency (if available)||Some homes are unable to accommodate for ducted AC due to space limitations|
How much does ducted air conditioning cost?
Ducted AC is the most expensive to install out of all air con options available. This is because it’s a permanent system that requires a professional to assess your house and install. Depending on the size of your home, there might be a lot of ducts that will need to be installed throughout, plus a compressor unit outside to pump the cool air through. Expect to pay $5,000+ for ducted air conditioning.
Is ducted air conditioning cheaper to run?
Ducted air con doesn’t carry the energy efficiency rating label. Some manufacturers choose to label three phase and ducted air conditioners, but it’s not mandatory. However, they do have to meet minimum energy performance requirements which is currently at 3.10 Annualised Energy Efficiency Ratio (AEER) and/or Annualised Coefficient of Performance (ACOP) for Australia.
Ducted air conditioning is generally the most expensive form of home air conditioning, costing as much as $2 an hour in electricity usage (based on 35c/kWh). This compares to around 60c for split system air conditioning.
Ducted Air Conditioning Brands
Now you know a little about ducted air conditioning and what it might cost you, here is a guide to the major brands offering it in Australia.
All of this can be set via its controller designed with large, easy-to-read text and an intuitive interface.
Daikin Ducted Air Conditioning
Daikin has been operating in Australia for more than 45 years, so you’d hope they know a thing or two about the harsh Australian climate. Daikin offers four ranges of ducted reverse cycle air conditioning systems:

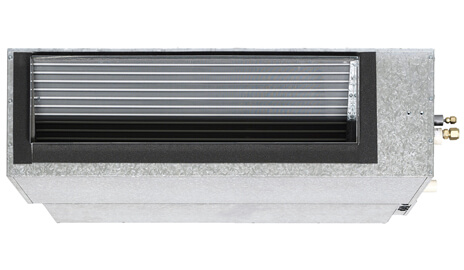

- Premium Inverter Ducted: designed with R22 retrofit capability and suited for small to large houses
- Inverter Ducted: a compact design for small to large houses, ideal for installation where the roof and outdoor space is limited
- Slim-Line Ducted: suited for narrow ceiling spaces
- Bulkhead System: designed for those looking at a discreet installation, particularly drop ceilings or shallow ceilings
Some of the features Daikin offers within its range include a Night Quiet Mode to reduce outdoor noise levels while you sleep and automatic airflow adjustment, plus an automatic fan speed selection to suit the set temperature. For existing homes, it has a retrofit system which means you can purchase a new system but use the existing pipework and wiring.
Additional functionality includes a weekly schedule timer, off timer and quick cool/heat mode that temporarily increases power to reach your desired temperature.
Fujitsu General Ducted Air Conditioning
Fujitsu General has a long history of innovation and in turn, it’s one of Australia’s most awarded consumer electronics brands. It has four ducted air con ranges available:
- Bulkhead: compact design with flexible installation options
- Slimline: as the name might suggest this range is slim and compact to fit into most ceilings with zone control
- Single Phase: high static allows for a number of air ducts to be installed and it also has zone control
- Three Phase: designed to offer higher energy efficiency than other ranges, plus zone control
Fujitsu’s ducted air conditioning options feature a number of static pressure modes, plus the option of installing the unit in the ceiling or floor. All models boast DC fan motors, DC rotary compressors, and programmable systems.
All models also feature an intuitive control panel that lets you select the temperature, choose the fan speed, check the current temperature, and program a weekly timer. The Fujitsu optional backlit zone controller allows for up to eight zones to be set. You can also rename the zones such as Zone 1 as ‘Living Area’, Zone 2 as ‘Kitchen’ and so on for convenience.
Mitsubishi Electric Ducted Air Conditioning
Mitsubishi Electric specialises in air conditioners, fridges and freezers. It features several series of ducted air conditioners, with a number of models in each:
- Ceiling-concealed air conditioners (7.1kW-14kW): boasted for a low profile and lightweight design with a wide selection of fan speeds
- Ducted air conditioning (10kW-14kW): stated to have quiet operation with single phase or three phase power options available, plus high airflow due to high static pressure
- Ducted air conditioners (10kW-14kW): has a two-piece construction with single and three phase power options
- Ducted air conditioners (16kW-19kW): offers single phase or three phase power options, and provides a supposedly high airflow due to the high static pressure
- Ducted air conditioners (22kW): largest heating/cooling capacity with three phase power supply
Its ducted reverse cycle air conditioning models offer warm heat during winter and cool air during summer. The range is ideal for multiple room applications and can incorporate zone selection if required. Its air diffusers are available in different designs to suit your home décor.
Mitsubishi Electric states it’s possible to adjust the distance between the air-intake and air-outlet vents to create the optimal airflow configuration for your home.
Toshiba Ducted Air Conditioning
Toshiba has been offering air conditioning solutions to Aussie homes for over 40 years. Its aim is to improve standards in comfort, ease of use, plus energy efficiency with its ducted reverse cycle air conditioning range:
- Single Phase: expect cooling capacities from 3.3kW (minimum) to 14.1kW (maximum), depending on the model
- Three Phase: expect cooling capacities from 3.3kW (minimum) to 27kW (maximum), depending on the model
Toshiba’s hybrid inverter integrates two compressor control modules claimed to ensure constant comfort along with maximum energy efficiency. It also comes with dual controllers and the ability to adjust settings from either controller.
Other features include a weekly schedule, a timer that can be set for the indoor unit to switch off each day, plus a rapid heat and cool function which increases the air con power temporarily to achieve the desired temperature before returning to normal power.
Factors to consider about ducted reverse cycle air conditioning
Before jumping into any purchase, there are a few details about your home that you’ll need to know including:
- Number of people in your home
- How much ceiling cavity space is available
- Floor plan of your home (including the number of levels, ceiling height, size/position of windows and doors, room direction, and type of construction)
- Any limitations (such as limited ceiling space or small outdoor area where the outdoor unit needs to be installed)
Ducted air conditioning is not an “off-the-shelf” buy, so the size and design will require a supplier to assess all the specifics.
Is ducted air conditioning worth the money?
Ducted air conditioning isn’t cheap. It’s a permanent system that covers the whole home and therefore involves heavy installation costs. As it’s not for everyone, it’s important to also look at other cooling and heating options such as split system (including reverse cycle), window, portable air conditioners, or portable heaters (if you’re just looking for a heating option) to find the best option for your home.
Depending on the climate you live in, you might only need a cooling-only or heating-only ducted system.
Whether you go for ducted air conditioning or not, we hope this guide has been helpful in answering your questions.
